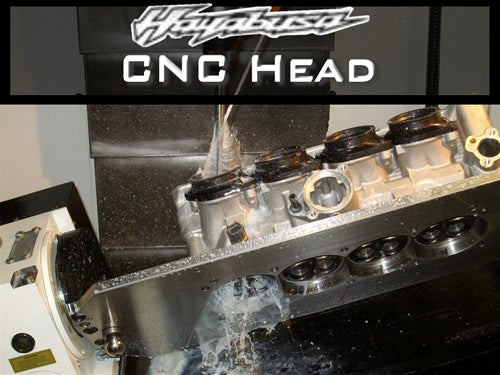

RC's Performance 5 Axis CNC Ported Heads
We need your head as a core.
99-07 Hayabusa
OPTIONS
08-20 Hayabusa
OPTIONS
OPTIONS explained.....
Heavy Duty Valve Springs: Heavy duty valve springs are a safety measure against floating a valve or spitting a shim. Major engine damage can occur if too weak of a spring is used. We suggest upgrading to heavy duty valve springs in all nitrous applications or if you are upgrading to a high lift cam.
Bronze Valve Seats: Bronze valve seats are used to help avoid premature wear on the valve face of Stainless Steel and Titanium valves. The stock Stellite valve seats are much more abrasive to the valve face. Utilizing the Bronze valve seats prolong the life of exotic valve materials such as Inconel, Stainless, and Titanium.
Sink Valve Guides: When using a high lift cam such as a .415" or larger, contact issues between the valve spring retainer and the valve seal can occur. Sinking the valve guide gives the retainer more clearance.
Clearance Cam Journal Caps: When using a high lift cam (.430" and larger), your cam journal caps will need to be clearanced so the lobes do not come in contact with the cam caps. Damage could be as minor as small cam wear or as drastic as catastrophic engine failure.
To view an animation of our 5 Axis CNC Ported Heads and learn more about them.....
Click Here
We need your head as a core.
99-07 Hayabusa
| CNC Ported Stock Valve Head | $1400 |
OPTIONS
| Heavy Duty Valve Springs | $170 |
| Bronze Valve Seats Installed on Intake | $800 |
| Sink Valve Guides on Intake | $200 |
| Clearance Cam Journal Cap | $200 |
08-20 Hayabusa
| CNC Ported Stock Valve Head | $1400 |
| CNC Ported w/Stainless Steel Exhaust Valves | $1700 |
CNC Ported w/1mm Oversized Stainless Steel Intake Valves |
$1700 |
CNC Ported Grudge Head w/1mm Oversized Stainless Steel Intake and Exhaust Valves |
$2400 |
CNC Ported Grudge Head w/1mm Oversized Titanium Intake and Stainless Steel Exhaust Valves |
$3200 |
OPTIONS
| Heavy Duty Valve Springs | $170 |
| Bronze Valve Seats Installed on Intake | $800 |
| Sink Valve Guides on Intake | $200 |
| Clearance Cam Journal Cap | $200 |
OPTIONS explained.....
Heavy Duty Valve Springs: Heavy duty valve springs are a safety measure against floating a valve or spitting a shim. Major engine damage can occur if too weak of a spring is used. We suggest upgrading to heavy duty valve springs in all nitrous applications or if you are upgrading to a high lift cam.
Bronze Valve Seats: Bronze valve seats are used to help avoid premature wear on the valve face of Stainless Steel and Titanium valves. The stock Stellite valve seats are much more abrasive to the valve face. Utilizing the Bronze valve seats prolong the life of exotic valve materials such as Inconel, Stainless, and Titanium.
Sink Valve Guides: When using a high lift cam such as a .415" or larger, contact issues between the valve spring retainer and the valve seal can occur. Sinking the valve guide gives the retainer more clearance.
Clearance Cam Journal Caps: When using a high lift cam (.430" and larger), your cam journal caps will need to be clearanced so the lobes do not come in contact with the cam caps. Damage could be as minor as small cam wear or as drastic as catastrophic engine failure.
To view an animation of our 5 Axis CNC Ported Heads and learn more about them.....
Click Here
