Multi Stage Lock Up Clutch GSXR 1000 and Hayabusa
Multi Stage Lock Up Clutch GSXR 1000 and Hayabusa
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Couldn't load pickup availability
If you are running high Horsepower motor, then you've got to have a lock-up. The MTC multi stage lock-ups are the finest on the market, featuring tunable stages of lock-up allowing clutch engagement to suit your riding style.
Each arm represents one stage of lock-up adjustment. Arms are controlled by stall springs, thus allowing the mechanic flexibility in determining the RPM each finger will start applying clutch pressure. In addition, an arm can be ajusted to release clutch pressure at maximum rated torque your engine produces, thus keeping your motor at maximum efficiency with each gear change. All multi stage lock up clutches and components are covered under US patents.
***Please note the following Models below will need your oem parts as cores****
***Your MTC Clutch will not ship until RCP receives required cores listed below***
MTC Billet Inner Hub must be purchased for Hayabusa Lk/UP
GSXR 1000 01-04 Lock Up Includes:
GSXR 1000 01-04 - Pressure plate only
Kawasaki ZX14R 06-11 - Pressure Plate Only
Kawasaki ZX14R 12-17 - Pressure Plate Only
Hayabusa
Pressure plate ($79.00) core charge
Clutch cover ($240.00) core charge
GSXR 1000 01-04
Pressure plate ($69.00) core charge
Kawasaki ZX-14R
Pressure Plate ($85) Core Charge
If you do not have any of the above core parts, we can supply needed cores for an additional fee.
***Please note the following Models below will need your oem parts as cores****
***Your MTC Clutch will not ship until RCP receives required cores listed below***
Hayabusa Lock Up Includes:

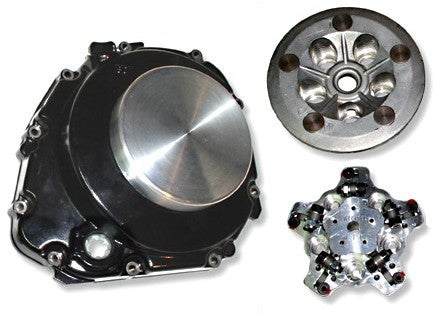

Modified clutch cover, modified pressure plate, and lock up assembly
MTC Billet Inner Hub must be purchased for Hayabusa Lk/UP
GSXR 1000 01-04 Lock Up Includes:
Clutch cover Spacer, modified pressure plate, and lock up assembly
GSXR 1000 05-08 Lock Up Includes:
GSXR 1000 05-08 Lock Up Includes:
Clutch cover Spacer, modified 03-04 pressure plate, (5) 03-04 spring bolts, 03-04 inner hub, 03-04 clutch steels, and lock up assembly
You will need to cut .200" off of your clutch push rod
***********************************************
Please note that we will need your parts for a core:
Please note that we will need your parts for a core:
***Cores must be in good usable condition.***
cores not needed
Please note that we will need your parts for a core:
Hayabusa - Pressure plate and clutch cover
GSXR 1000 01-04 - Pressure plate only
GSXR 1000 05-08 - No cores needed
Kawasaki ZX14R 06-11 - Pressure Plate Only
Kawasaki ZX14R 12-17 - Pressure Plate Only
**Modifications Needed**
If you do not have any of the above items, we can supply one for a core charge.
Hayabusa
Pressure plate ($79.00) core charge
Clutch cover ($240.00) core charge
GSXR 1000 01-04
Pressure plate ($69.00) core charge
Kawasaki ZX-14R
Pressure Plate ($85) Core Charge
If you do not have any of the above core parts, we can supply needed cores for an additional fee.
RCP does not issue credits for core components sent back to us after purchase of MTC Clutch Assemblies requiring your oem components as cores
