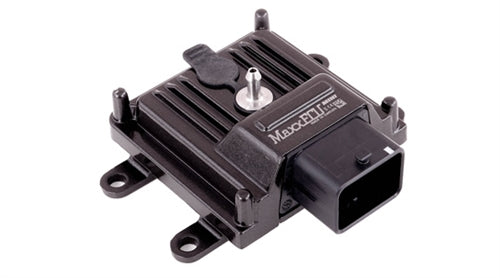

MaxxECU MINI Standard Kit with Harness

Unlock Your Engine's Potential with the MaxxECU MINI Standard Kit!

Designed for versatility and power, the MaxxECU MINI is perfect for a wide range of engines, supporting all 1-4, 6, and 8-cylinder configurations. Achieve precise control with fully sequential operation for up to 4 cylinders (using a digital input as HOME) or efficient wasted spark for up to 8 cylinders.

Comprehensive Inputs for Ultimate Control

• Intake air temperature sensor (IAT)
• Coolant temperature sensor (CLT)
• Throttle position sensor (TPS)
• 1 trigger input (VR/HALL) with automatic trigger level detection
• 2 digital inputs for speed sensors (Hall) or switches
• 2 extra 0-5V inputs for additional sensors like fuel/oil pressure
• Integrated 400kPa MAP-sensor for boost control up to 3bar/43PSI

Powerful Outputs for Performance Tuning

• 4 injector outputs (High impedance only)
• 4 ignition outputs for driving ignition modules, CDI units, or coils
• 4 versatile GPO outputs (2A each) for controlling fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, and more!

Advanced Technology for Peak Performance

• Seamless CAN bus expansion for modules, OEM vehicle CAN, and ODBII
• Effortless USB tuning with MaxxECU's MTune software
• 8MB internal memory for logging up to 1000Hz
• Wide supply voltage range: 8-22V
• Powerful ARM Cortex-M3 120MHz main processor
• High-resolution ignition control (0.1 degrees)
• Precise injector timing (0.001 ms)
• Lightning-fast updates: 2000 fuel and ignition calculations per second
• Industry-leading PC communication speed
• Compact and lightweight design: 85x120x43mm, 245g (ECU only)
• Durable, waterproof aluminum case
