JE Pistons

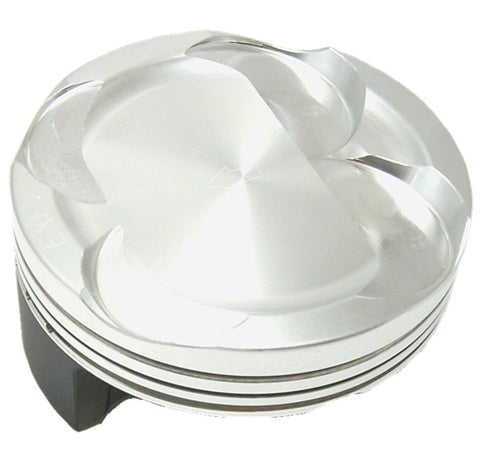

JE Piston Kit Suzuki GSXR1000 - Shelf Pistons

JE Piston Kit Suzuki GSXR1000 - Shelf Pistons

$1,139.95 USD
$1,139.95 USD
Sale Sold out
Select Piston Kit

Elevate Your Suzuki GSXR1000's Performance with JE Pistons!

Unleash the full potential of your Suzuki GSXR1000 with our premium JE Piston Kits. Engineered for extreme performance and built with precision, these pistons are crafted from 2618 T6 high tensile forged aluminum, ensuring superior strength and durability for even the most demanding racing applications.

  • High-Performance Material: Machined from 2618 T6 high tensile forged aluminum for exceptional strength and reliability.
  • Optimized Design: Features smooth flowing radii in the dome/dish for optimal combustion and performance, requiring no additional preparation.
  • Engineered for Competition: JE designs are specifically engineered for professional racing and extreme applications.
  • Complete Kits: Includes pins, pin fitment, wire locks, and rings in most kits (unless otherwise stated) for a hassle-free installation.

Suzuki GSXR1000 2009-2016

Std Bore: 74.5mm

Piston Kit # Disp. Bore Size Over Size Comp Ratio Gram Wt (g) Skirt Style Ring # Pin # Lock #
284700 999cc 74.5mm STD 10.1:1 180 FSR XA7450 591-1650-14-PTC 591-040-MW
284701 999cc 74.5mm STD 13.8:1 171 FSR XA7450 591-1650-14-PTC 591-040-MW
284702 999cc 76.5mm +2mm 13.8:1 183 FSR XG7650 591-1650-14-PTC 591-040-MW

Suzuki GSXR1000 2005-2008
Std Bore: 73.4mm

Piston Kit # Disp. Bore Size Over Size Comp Ratio Gram Wt (g) Skirt Style Ring # Pin # Lock #
254555* 998cc 73.4mm STD 10.1:1 179 FSR OEM (NOT INCL) 591-1650-14-PTC 591-040-MW
247628 998cc 73.4mm STD 13.8:1 158 FSR OEM (NOT INCL) 591-1650-14-PTC 591-040-MW
247629 1043cc 75mm +1.6mm 13.5:1 167 FSR XG7500 591-1650-14-PTC 591-040-MW
247631 1070cc 76mm +2.6mm 13.5:1 173 FSR XG7600 591-1650-14-PTC 591-040-MW

Suzuki GSXR1000 2001-2004

Std Bore: 73mm

Piston Kit # Disp. Bore Size Over Size Comp Ratio Gram Wt (g) Skirt Style Ring # Pin # Lock #
222105* 988cc 73mm STD 9.8:1 182 Round XA7300 630-2050-14-95C 630-050-MW
215817 988cc 73mm STD 13.5:1 156 FSR XA7300 630-1650-14-PTC 630-050-MW
213919 1042cc 75mm +2mm 13.5:1 162 FSR XG7500 630-1650-14-PTC 630-050-MW
192322 1070cc 76mm +3mm 13.5:1 180 Round XG7600 630-2050-14-95C 630-050-MW
221407 1070cc 76mm +3mm 13.5:1 177 FSR XG7600 630-1650-14-PTC 630-050-MW

*Must use .060" Head Gasket

Key Features for Peak Performance:

  • Forged from high-strength 2618 T6 aluminum alloy for ultimate durability.
  • Engineered dome/dish profiles with smooth radii for optimal combustion efficiency.
  • Designed to meet the extreme demands of professional racing.
  • Kits typically include pistons, pins, pin locks, and rings for a comprehensive upgrade.

Compatibility:

  • Suzuki GSXR1000 (2009-2016): Standard Bore 74.5mm
  • Suzuki GSXR1000 (2005-2008): Standard Bore 73.4mm
  • Suzuki GSXR1000 (2001-2004): Standard Bore 73mm

Upgrade your ride and experience the JE Pistons difference. Order yours today and dominate the competition!
