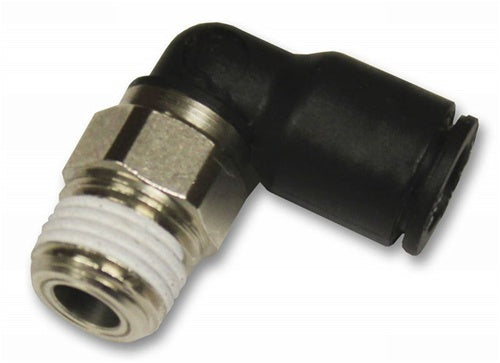

90* Swivel Push Fittiing

90* Swivel Push Fitting

Common Use:
Air shifter Cylinder
Air Tanks built into swingarm

• Maximum Pressure @ 70° F: 290 psi
• Temperature Range: -4° to +175° F
• Tubing: Use nylon (with a hardness of Shore D 50 and D 70), polyethylene (Shore D 44), and polyurethane (Shore A 95)

Sized for metric tubing, glass-filled nylon is strong and durable, plus it offers excellent impact and abrasion resistance. These fittings are for use with air. Push-to-connect fittings form a seal around the outside of the tubing; no tools are needed to release the tubing from the fitting. All are opaque black except the plugs are opaque red and adapters are nickel-plated brass. They include a stainless steel grasping ring, Buna-N (nitrile) O-ring, and a black polypropylene release ring. Threaded fittings have nickel-plated brass threads; male threads have a PTFE sealant except BSPP and metric straight threads, which have a Buna-N O-ring. They are not rated for sterilization. Vacuum rating is 28" Hg @ 70° F. All meet ISO

Key Features:
- 90-degree swivel push-to-connect design for easy maneuverability.
- Durable construction with metric black nylon and nickel-plated brass.
- Suitable for various tubing types including nylon, polyethylene, and polyurethane.
- High pressure and temperature resistance for demanding applications.
- Tool-free release for quick and convenient tubing connection/disconnection.

Ideal For:
- Air shifter cylinders
- Integrated air tanks in swingarms
- Pneumatic systems requiring flexible connections

Specifications:
- Max Pressure: 290 psi @ 70° F
- Temperature Range: -4° to +175° F
- Vacuum Rating: 28" Hg @ 70° F
- Material: Glass-filled nylon, nickel-plated brass, stainless steel, Buna-N (nitrile) O-ring, polypropylene release ring.

Note: Not rated for sterilization.
